Nta
• Nrog ceev dismantling spray tip thiab ceev-hloov nozzles, lub cev nyob twj ywm nyob rau hauv lub header - tsuas yog cov tshuaj tsuag cov tswv yim yog hloov uas tso cai rau koj txo nqi los ntawm kev hloov tawm tsuas yog cov lus qhia, thiab slash tu lub sij hawm.
• Feem ntau ceev dismantling nozzles tso cai rau muab cov lus qhia tshem tawm thiab ntsia ntawm tes thiab muab kev sib dhos tsis siv neeg.
• Xov ntau thiab tsawg suav nrog 1/4", 3/8"
• Txau lub kaum sab xis ntawm 45 txog 65 degrees.
• Cov khoom siv tshuaj- thiab corrosion-resistant PP los yog FRPP (Fiber reinforced Polypropylene) withstands kub ntawm txog 85 ° C.
• Siv nrog Nitrile lossis Fluorine roj hmab ua O-ring seal khoom uas yog tshuaj- thiab corrosion-resistant.

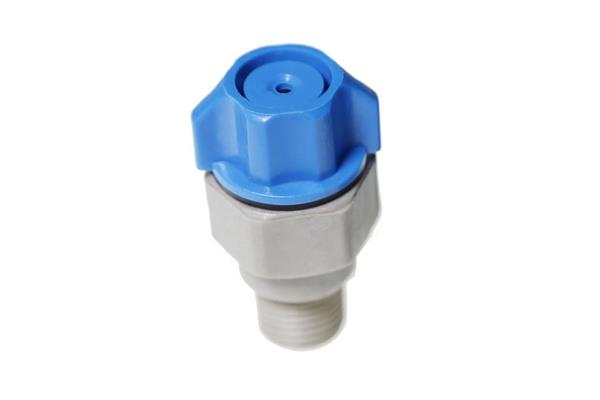

 PCB Ntxuav Tag Nrho Lub Taub Hau Ceev Dismantling Nozzle |  Ntxuav Tag Nrho Lub Taub Hau Ceev Dismantling Nozzle |
General Application
1) Industrial plating
2) Etching tshuab
3) Kev loj hlob
4) PCB ntxuav lossis ntxuav
5) Cua txias
6) Hlau tiav
7) Txheej
Parameter
| Lub khob hliav qab | ||||||||||||
Style No. | Tus nqi ntws (L / m) | Txau lub kaum sab xis | |||||||||||
0.7bar ib | 1.5bar ib | 2bar ua | 3bar ua | 4bar ua | 5bar ua | 6bar ua | 7bar ua | 10bar ua | 0.5bar ua | 1.5bar ib | 6bar ua | ||
QB 2 | 0.76 | 1.0 | 1.2 | 1.5 | 1.7 | 1.9 | 2.0 | 2.2 | 2.6 | 43° | 50° | 46° | |
QB3 | 1.1 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.3 | 3.9 | 52° | 65° | 59° | |
qw 3.5 | 1.3 | 1.9 | 2.2 | 2.6 | 3.0 | 3.3 | 3.6 | 3.9 | 4.5 | 43° | 50° | 46° | |
QB 5 | 1.9 | 2.7 | 3.1 | 3.7 | 4.2 | 4.7 | 5.1 | 5.5 | 6.5 | 52° | 65° | 59° | |
qw 6.5 | 2.5 | 3.5 | 4.0 | 4.8 | 5.5 | 6.1 | 6.7 | 7.1 | 8.4 | 45° | 50° | 46° | |
QB 10 | 3.8 | 5.4 | 6.2 | 7.4 | 8.5 | 9.4 | 10.2 | 11.0 | 13.0 | 58° | 67° | 61° | |
 | Nozzle lub cev No. | Xov loj | |
QJJ 1/8'' | 1/8'' | ||
QJJ 1/4'' | 1/4'' | ||
QJJ 3/8'' | 3/8'' | ||
lub cev | QJJB 1/4'' | 1/4'' (Lub khob hliav qab) | |
Ordering cov ntaub ntawv
QJJ | 1/4'' | QB 5 | PP |
↓ | ↓ | ↓ | ↓ |
Lub cev tsis muaj. | Xov loj | Spray tip no. | Khoom siv |
