Air Atomizing Spray Nozzles

Cov txheej txheem huab cua atomizing nozzle xaiv muaj xws li siphon- lossis lub ntiajteb txawj nqus-fed configurations, sab hauv lossis sab nraud sib xyaw, tsib hom tshuaj tsuag thiab ntau pua lub peev xwm. Cov huab cua zoo atomizing, misting, los yog fogging nozzle yog qhov tseem ceeb rau kev siv xws li txheej thiab cua txias mus rau plua plav tawm, roj cua txias, lubricating thiab lwm yam. Nyob ntawm peb cov kws tshaj lij los pab koj xaiv qhov kev xaiv zoo tshaj plaws.

Dab tsi yog qhov txawv ntawm Air Atomizing Spray Nozzles?

Adjustable siab-fed Flat Ntxuam Cua Atomizing Nozzles

Cua siab: 3-5 bar

Ua kua siab: 1-3 bar

Lub kaum sab xis dav tshaj plaws: nyob ib ncig ntawm 150 °.

Spray nrug: Ib ncig ntawm 1.5 meters.

Daim ntawv thov: txias, plua plav tawm, humidifying, lubricating, tshuaj tua kab mob.

Flow tus nqi yog adjustable.

Siphon-Fed Flat Ntxuam Cua Atomizing Nozzles

Siphon qhov siab: hauv 1.5 meters

Ua kua siab: 3-5 bar

Lub kaum sab xis dav tshaj plaws: nyob ib ncig ntawm 90 °

Spray nrug: Ib ncig ntawm 1.5 meters

Daim ntawv thov: txias, plua plav tawm, humidifying, lubricating, tshuaj tua kab mob

Flow tus nqi yog adjustable.

Internal Mix Lub khob hliav qab / Round Air Atomizing Nozzles

Cua siab: 3-5 bar

Ua kua siab: 1-3 bar

Lub kaum ntse ntse: nyob ib ncig ntawm 15 °.

Txau deb: Nyob ib ncig ntawm 2.5 meters.

Daim ntawv thov: txias, plua plav tawm, humidifying, lubricating, tshuaj tua kab mob.

Flow tus nqi yog adjustable.

Siphon-Fed Round Spray Air Atomizing Nozzles

Siphon qhov siab: hauv 1.5 meters

Ua kua siab: 3-5 bar

Lub kaum ntse ntse: nyob ib ncig ntawm 15 °

Txau deb: Nyob ib ncig ntawm 2.5 meters

Daim ntawv thov: txias, plua plav tawm, humidifying, lubricating, tshuaj tua kab mob

Flow tus nqi yog adjustable.

Round Spray Wide Angle Cua Atomizing Nozzles

Cua siab: 2-8 bar

Ua kua siab: 2-8 bar

Lub kaum ntse ntse: nyob ib ncig ntawm 80 °.

Spray nrug: Ib ncig ntawm 1.5 meters.

Kev Pab: Npog ib ncig ntawm 6-10 square meters

Daim ntawv thov: txias, plua plav tawm, humidifying, lubricating, tshuaj tua kab mob.

Flow tus nqi yog adjustable.

Sab Nraud-Mix Flat Ntxuam Cua Atomizing Nozzles

Cua siab: 3-5 bar

Ua kua siab: 1-3 bar

Lub kaum ntse ntse: nyob ib ncig ntawm 80 °.

Spray nrug: Ib ncig ntawm 1.5 meters.

Daim ntawv thov: txias, plua plav tawm, humidifying, lubricating, tshuaj tua kab mob.

Nws tuaj yeem txau cov kua dej viscous.

Flow tus nqi yog adjustable.

Round Spray External-Mix Air Atomizing Nozzles

Cua siab: 3-5 bar

Ua kua siab: 1-3 bar

Lub kaum ntse ntse: nyob ib ncig ntawm 15 °.

Txau deb: Nyob ib ncig ntawm 2.5 meters.

Daim ntawv thov: txias, plua plav tawm, humidifying, lubricating, tshuaj tua kab mob.

Flow tus nqi yog adjustable.

Non-adjustable Fogging Air Atomizing Nozzles

Siphon qhov siab: hauv 1.5 meters

Ua kua siab: 3-5 bar

Lub kaum sab xis dav tshaj plaws: nyob ib ncig ntawm 90 °

Spray nrug: Ib ncig ntawm 1.5 meters

Daim ntawv thov: txias, plua plav tawm, humidifying, lubricating, tshuaj tua kab mob.

Flow tus nqi yog adjustable.

Clean-out Koob Ob- Kua Cua Atomizing Nozzles

Cua siab: 3-5 bar

Ua kua siab: 1-3 bar

Lub kaum ntse ntse: 15 ° --- 150 °

Spray nrug: 1.5 - 2.5 meters.

Daim ntawv thov: txias, plua plav tawm, humidifying, lubricating, tshuaj tua kab mob.

Cov koob ntxuav tawm tuaj yeem tiv thaiv kev thaiv.

JBC Back Connection Hom Atomizing Nozzles

Cua siab: 3-5 bar

Ua kua siab: 1-3 bar

Lub kaum ntse ntse: 15 ° --- 150 °

Spray nrug: 1.5 - 2.5 meters.

Daim ntawv thov: txias, plua plav tawm, humidifying, lubricating, tshuaj tua kab mob.

Cua thiab kua connectors nyob rau tib sab nraub qaum ntawm nozzle.

Ib Sab Sib Txuas Cua atomizing Nozzles

Cua siab: 3-5 bar

Ua kua siab: 1-3 bar

Lub kaum ntse ntse: 15 ° --- 150 °

Spray nrug: 1.5 - 2.5 meters.

Daim ntawv thov: txias, plua plav tawm, humidifying, lubricating, tshuaj tua kab mob.

Cua thiab kua connectors yog nyob rau ntawm ib sab ntawm lub nozzle.

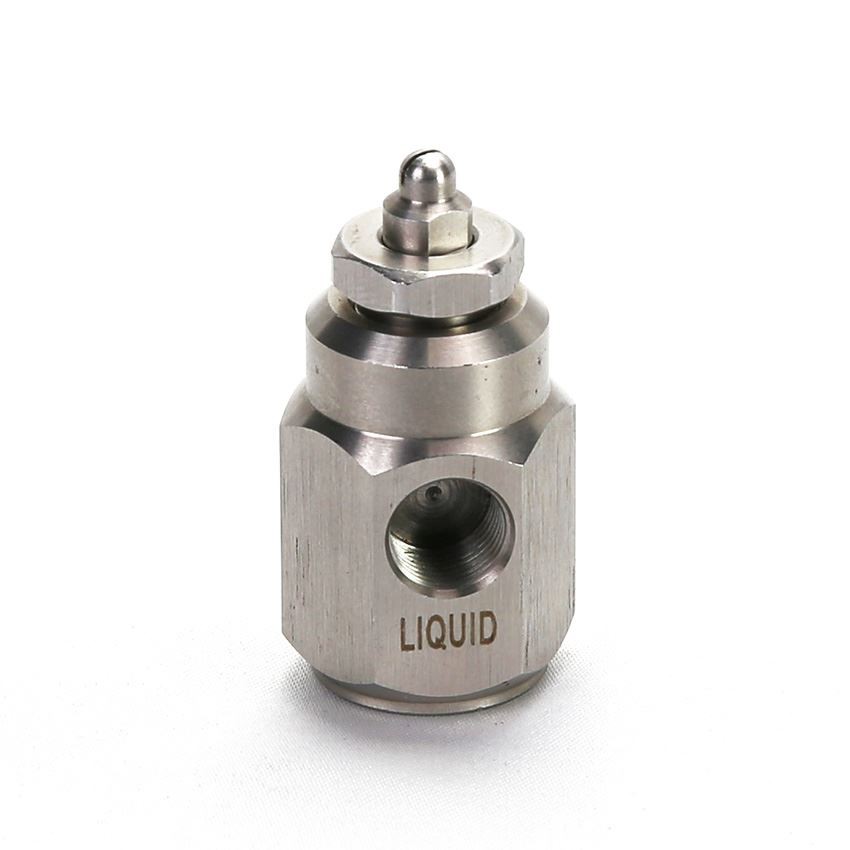

Mini Hom Misting Cua Atomizing Nozzles

1/8'' Lub cev muaj cov kua thiab cua nkag rau ntawm qhov tsis sib haum ntawm lub cev lub cev.Compact design lossis mini type nozzles muaj lub cev lub cev thiab cov tshuaj tsuag teeb tsa.Av ntau yam tshuaj tsuag teeb tsa muaj nyob rau hauv ntau hom tshuaj tsuag. Khoom siv: 303 / 304SS, 316SS, Brass. Cov tshuaj tsuag yog finely atomized, pos huab los yog pos huab.

Multi-head Fogging Air Atomizing Nozzles

Multi-head Fogging Air Atomizing Nozzles muaj 4 lossis 5 lub taub hau tshuaj tsuag nrog cua thiab kua dej nkag ntawm tib sab. Muaj ntau hom tshuaj tsuag teeb tsa muaj nyob rau hauv ntau hom tshuaj tsuag. Khoom siv: 303 / 304SS, 316SS, Brass. Cov tshuaj tsuag yog finely atomized, pos huab los yog pos huab. Cua thiab kua siab feem ntau yog 2-3 bar.

JAU Anti-drip Fog Air Atomizing Nozzles

JAU Anti-drip Fog Tsis Siv Neeg Huab Cua Atomizing Nozzles muaj cov tsav tsheb roj los tswj' on-off', nruab nrog rab koob tiv thaiv kev ua haujlwm thiab tuaj yeem ncig 180 zaug hauv ib feeb. Thaum'on-off' khiav, tsuas yog cov kua ntawm lub sprayer yuav raug kaw. Nws muaj ntau yam tshuaj tsuag teeb-ups muaj nyob rau hauv ntau yam tshuaj tsuag qauv

Qhuav Fog Ultrasoic Cua atomizing Nozzles

Ultrasonic atomizing nozzle tuaj yeem siv tau rau cov dej noo zoo, txias txau, pwm lubricating, plua plav tawm thiab lwm yam.

Cov tee dej yog nplua thiab sib faib

Lub kaum sab xis yog 30 °, 60 °, 80 °

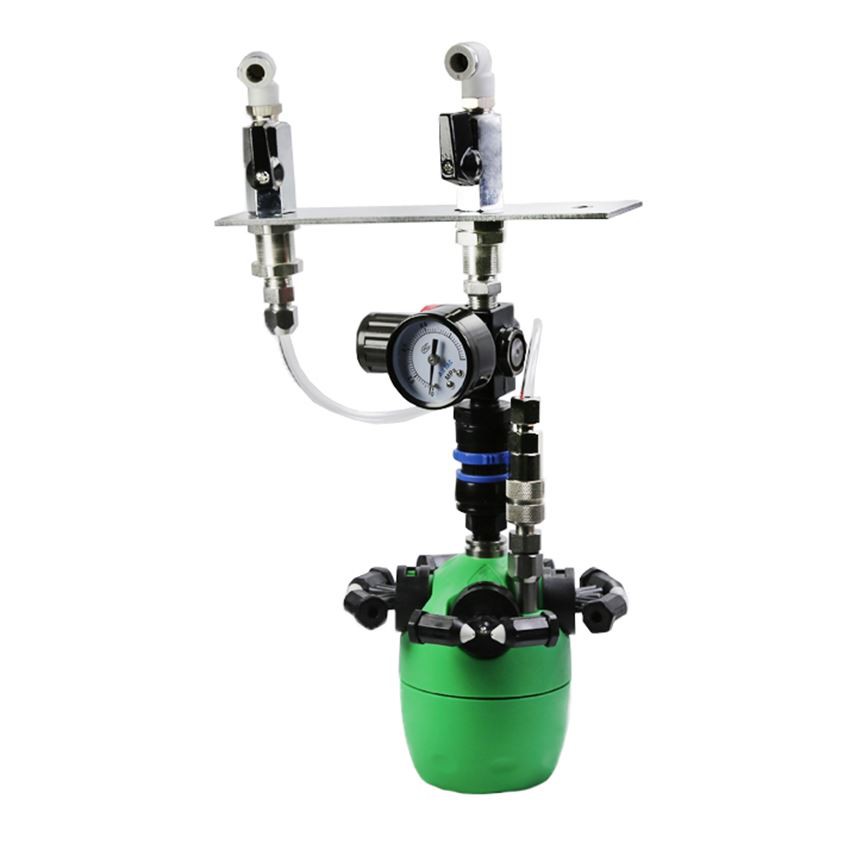

Portable Dry Fog Tank Cua Atomizing Nozzles

Qhov zoo tshaj plaws pos huab humidifier nozzle tsim silk-zoo li ultra-dry pos huab particle. Nws yog qhov zoo tagnrho rau humidification hauv qhov chaw nqaim yam tsis muaj phab ntsa ntub dej. Portable Humidifier qhuav pos huab cua Atomizing Nozzles 'txhaj tshuaj tuaj yeem ncav cuag qhov deb ntawm 5-6 meters thiab ua tau raws li qhov yuav tsum tau ua ntawm humidifying lossis txias rau qhov chaw ntawm 100 square meters. Cov huab cua uas tsim tau tuaj yeem ntab saum huab cua yam tsis tau ntub hauv av. Cov tshuaj tsuag yog finely atomized, pos huab los yog pos huab thiab tsis yooj yim los mus clog.

Kev piav qhia

Daim ntawv thov

1 Cua txias

2 Kev ua kom sov, Moistening, Misting, Fogging

3 Lubricating

4 Txau

5 Disinfection, Sterilization

6 Kev tswj tsis hnov ​​tsw

7 Kev tiv thaiv plua plav

8 Kev ua tshuaj lom neeg

9 Cov pa roj evaporation

Vim li cas thiaj xaiv Xinhou huab cua atomizing nozzles?

1 10+ xyoo ntawm kev tsim khoom

Shanghai Xinhou Txau& Purification Equipment Co., Limited tau tsim muaj nyob rau hauv 2004 thiab muaj ntau tshaj li 16 xyoo ntawm nozzle manufacturing kev los ntawm 2020. Rau tag nrho cov nozzles peb tsim, peb muaj ib tug tiav lawm ntau lawm zoo soj ntsuam txheej txheem kom cov neeg muas zaub ntseeg Xinhou Spray ntau. Tau ntau xyoo lawm, Xinhou tau nyob rau hauv pem hauv ntej ntawm nozzle tsim thiab tsim. Peb cov kws tshaj lij engineers tuaj yeem tsim cov kev cai huab cua atomizing nozzle los txhim kho koj cov txheej txheem kev lag luam tshwj xeeb.

2 Peb cov xwm txheej ua tiav

Peb niaj hnub muab rau qee lub tuam txhab muaj npe nrov hauv kev lag luam tsheb thoob ntiaj teb, xws li TKS hauv Asmeskas, thiab qee lub tuam txhab muaj npe nrov hauv ltalis uas nws cov haujlwm muaj xws li Mercedes Benz, Nissan thiab lwm yam. Tsis tas li ntawd, peb kuj muab rau ntau tus neeg siv khoom los ntawm lwm cov lag luam, nrog rau cov npe nrov tshaj plaws. yog Tuam Tshoj Fais Fab thiab cov koom tes ntawm COSCO. Peb qhov zoo tau yeej lawv txoj kev ntseeg siab thiab peb tsim kev koom tes ntev thiab ruaj khov.

3 Flexibility hauv kev tswj xyuas kev ua haujlwm

Raws li cov chaw tsim khoom lag luam hloov pauv, peb muaj peev xwm teb cov neeg siv khoom xaj sai sai, muab cov khoom lag luam dav dav, lossis qhia cov khoom tshiab rau ntau yam tsis muaj zog.

Kev ua haujlwm yooj yim yog txiav txim siab feem ntau los ntawm peb pab neeg hluas thiab muaj zog uas muaj kev tshaj lij, muaj tswv yim, ua siab dawb thiab muaj lub luag haujlwm.

4 Ntau yam khoom siv

Peb muaj cov tshuaj tsuag nozzles muaj rau ntau yam kev siv zog, cov nqi ntws thiab cov qauv tshuaj tsuag. Peb cov khoom muaj ntau yam nplua nuj, domestic thiab txawv teb chaws counterparts tsis tuaj yeem saib dhau. Qhov no yog vim muaj ntau ntawm cov khoom siv raw, cov txheej txheem, cov khoom siv thiab cov qauv zoo ntawm Xinhou Spray Company. Ntawm cov uas koj tuaj yeem xaiv cov yam ntxwv ua haujlwm uas haum rau koj zoo tshaj plaws.

5 Kev xa khoom sai

Kev tswj xyuas yooj yim ua rau peb muab peb cov neeg siv khoom xa khoom sai, nrog rau kev xa khoom sai raws li cov neeg siv khoom' kev xaiv. Rau qee cov khoom txheem uas peb muaj hauv Tshuag, peb tuaj yeem muab xa tuaj sai.

Cua Atomizing Spray Nozzles: Phau Ntawv Qhia Pab Tau rau Cov Neeg Ntxim Ntxim Ua

Yuav ua li cas kom tau txais tus nqi lossis hais lus ntawm huab cua atomizing nozzles?

Tus nqi ntau ntawm Xinhou cua atomizing spray nozzles nyob ntawm qhov loj thiab ntws tus nqi, cov khoom siv thiab lwm yam.

Cov hauv qab no yuav cuam tshuam rau koj cov lus hais:

A. Cov Qauv Nozzle: Cov qauv qauv; Customized qauv.

B. Khoom siv: Stainless hlau (SS303, SS304, SS316)

C. Specification: Loj, ntws tus nqi, tshuaj tsuag lub kaum ntse ntse

D. Order kom muaj nuj nqis: Peb txais cov qauv txiav txim. Rau qhov khoom no. Hauv Tshuag, Txawm tias 1 pc ntawm cov qauv tuaj yeem xaj lossis dawb. Rau cov khoom tsis muaj Tshuag, qhov kev txiav txim yam tsawg kawg nkaus yog 20 pcs. Qhov loj dua tus nqi pheej yig dua.

E. Txhua xyoo kev txiav txim tag nrho: Rau cov neeg siv khoom mus sij hawm ntev, koj yuav txaus siab rau qhov luv nqi loj tshaj plaws

Tej zaum koj xav kawm ntxiv txog huab cua atomizing nozzles?

Dab tsi yog Air Atomizing Nozzles?

Cua Atomizing Nozzles siv kev sib xyaw ua ke ntawm cov cua compressed thiab kua los tsim cov qauv atomized heev ntawm cov nqi qis. Ob hom tshuaj nozzles muaj ob hom kev ua haujlwm: hom siab thiab hom siphon. Tsim los ntawm lub cev thiab cov txheej txheem tshuaj tsuag (cua cua thiab lub hau dej) - ntau hom tshuaj tsuag thiab cov dej ntws tuaj yeem haum. Nyob rau tib lub sijhawm, pneumatic atomizers muab faib rau hauv kev sib xyaw thiab kev sib xyaw sab nraud.Internal mix set-ups muab cov cua thiab kua hauv lub hau. Internal mix set-ups tuaj yeem tsim cov atomization zoo tshaj plaws tab sis tsis haum rau cov kua dej khov. Kev sib xyaw sab nraud ua ke ua ke cov huab cua thiab cov kua dej sab nraud rau lub hau npog. Feem ntau, cov txheej txheem sab nraud tsis yog atomize zoo tab sis tuaj yeem siv nrog cov kua dej ntau dua.

Air atomized spray nozzles yog hom ntau tshaj plaws ntawm atomizing nozzles thiab muaj ntau yam tshwj xeeb tsim. Muaj nyob rau hauv txhua yam khoom siv thiab ntau lub kaum ntse ntse, lwm cov kua dej (feem ntau yog cua) yog tov nrog cov txheej txheem kua. Lub resulting tshuaj tsuag yog ib tug siab ceev ca los yog tag nrho cov cone qauv ntawm zoo heev tee droplets. Nrog rau hom nozzle koj cov huab cua thiab cov kua siab sib piv ua lub luag haujlwm tseem ceeb hauv cov tee me me tau txais. Huab cua atomizing nozzles tsim cov huab cua zoo tshaj plaws ntawm txhua hom nozzle.

Cov cua atomizing nozzles ua haujlwm li cas?

Cua atomizing nozzles atomize cov kua los ntawm kev tsim cov tshuaj tsuag zoo heev. Cov kua thiab compressed cua (gas) yog siv los tsim cov huab cua ntawm cov kua atomized ntawm qhov tsis tshua muaj siab.

Dab tsi yog qhov txawv ntawm inter mix thiab sab nrauv sib xyaw hauv huab cua atomizing nozzles?

Ib qho kev sib xyaw ua ke sab hauv yog qhov tsim nyog thaum dej, kua viscosity tsawg, lossis cov kua uas tsis muaj teeb meem yuav tsum tau atomized. Ib qho kev sib xyaw sab nraud yog qhov tsim nyog rau atomizing cov kua nplaum uas yuav ua rau muaj kev cuam tshuam rau lub nozzle.

Kuv yuav xaiv hom huab cua atomization txau li cas?

Pav ca ntxuam atomizing nozzles yog tsim nyog rau humidifying thiab txias ntawm cov khoom, rau lub web dampening, los yog thaum twg ib tug dav linear kev pab them nqi yuav tsum tau. Tag nrho lub khob hliav qab atomizing nozzles yog tsim nyog thaum muaj kev cuam tshuam los yog kev pab them nqi.

Kuv yuav ua li cas thiaj xaiv cov cua atomizing nozzle?

Cov neeg muas zaub feem ntau tsis paub dab tsi droplet loj lawv xav tau. Tej zaum lawv yuav tsis paub txog qhov txaus ntshai. Txawm hais tias txhua daim ntawv thov muaj nws cov kev xav tau tshwj xeeb, koj tuaj yeem coj mus rhaub rau hauv peb qhov kev paub txog kev pom zoo. Peb tuaj yeem ua haujlwm nrog koj los pab txo qhov kev kwv yees thiab ua kom koj cov tshuaj tsuag kom zoo.
